1. Description

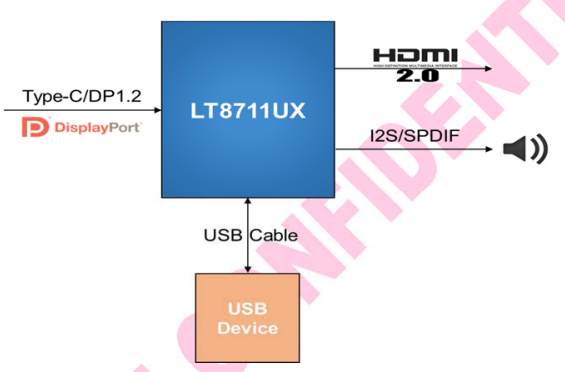

The LT8711UX is a high performance Type-C/DP1.2 to HDMI2.0 converter, designed to connect a USB Type-C source or a DP1.2 source to an HDMI2.0 sink.
The LT8711UX integrates a DP1.2 compliant receiver, and an HDMI2.0 compliant transmitter. Also, two CC controllers are included for CC communication to implement DP Alt Mode and power delivery function, one for upstream Type-C port and another for downstream port. On-chip USB3.0 switch is a high-speed bi-directional passive switch which provides flexible switching to accommodate connector flipping. This switch also handles muxing between 2-ch data / 2-ch video and all 4-ch video.
Two digital audio output interfaces are available, I2S and SPDIF. Both support 8-ch LPCM or compressed audio at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the use of a dedicated configuration I2C slave interface.

2. Features

? USB Type-C
? DP1.2 Receiver
? HDMI2.0 Transmitter
? Digital Audio Outputs
? Miscellaneous

3. Application

? Docking Station
? Dongle

一：九黎科技可提供全套開發資料：規格書，電路圖，DEMO,在線與原廠技術支持溝通推薦更適合客戶的解決方案等等，能滿足系統廠商不同的設計要求，歡迎廣大客戶來電咨詢，可提供樣品和含稅17%！

代理產品，每一片芯片都有原廠來貨證明，杜絕一切假貨后顧之憂，讓您的用料更加放心可靠！
