LT6711A 是一款經過深度優化的HDMI重新驅動器IC，可通過執行電纜或電路板走線損耗補償來增強TMDS信號質量。LT6711可配置為在HDMI1.4b下工作，數據速率高達3.4Gb / s，HDMI2.0標準，最高6Gb / s數據速率，可實現4Kx2K 60Hz或1080P的最高分辨率，刷新率更高。
LT6711A的輸入接收器具有多級可編程線性均衡器，可通過符號間干擾（ISI）支持最大25dB的損耗補償。輸出發送器通過多級可編程輸出擺幅和高達6dB的去加重來重新驅動接收信號。
還包括內置DDC攔截功能，與時鐘通道上的精確頻率檢測協同工作，以自動設置重新驅動器參數。
LT6711A內部集成了一個8位OCM和SPI閃存（堆疊芯片）來運行程序。LT6711還支持在線軟件升級。
LT6711A采用先進的CMOS工藝制造，采用小尺寸5mmx5mm BGA81（LT6711B）和7.5mmx7.5mm QFN64（LT6711A）封裝。該封裝符合RoHS標準，額定工作溫度范圍為-40°C至+ 85°C。

LT6711A is a deeply-optimized HDMI re-driver IC that enhances TMDS signal quality by performing cable or board trace loss compensation. LT6711A can be configured to work under HDMI1.4b with up to 3.4Gb/s data rate or HDMI2.0 standard with maximum 6Gb/s data rate to allow for the highest resolutions of 4Kx2K 60Hz or 1080P with higher refresh rates.
The input receiver of LT6711A features a multi-level programmable linear equalizer that can support maximum 25dB loss compensation due to Inter-Symbol Interference (ISI). The output transmitter re-drives the received signal with multi-level programmable output swing and up to 6dB de-emphasis.
The Build-in DDC interception function, co-working with an accurate frequency detect on clock channel is also included to automatically setup re-driver parameters.
LT6711A internally integrates an 8-bit OCM and SPI flash memory (stacked die) to run program. Online software upgrade is also supported for LT6711A.
LT6711A is fabricated in advanced CMOS process and implemented in a small outline 5mmx5mm BGA81 (LT6711B) and 7.5mmx7.5mm QFN64 (LT6711A) package. This package is RoHS compliant and specified to operate from -40°C to +85°C.

2. Features
? HDMI2.0 Receiver
? DP1.2 Transmitter
? Full-Featured USB Type-C
? USB Type-C Charging Port
? Miscellaneous

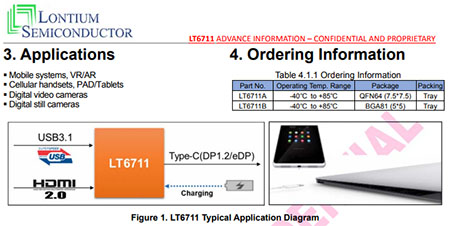

3. Applications
? Mobile systems, VR/AR
? Cellular handsets, PAD/Tablets
? Digital video cameras

? Digital still cameras
