LT86102SXE

?符合HDMI 1.4 / 2.0＆DVI 1.0規范   封裝PQFP 80

 1.說明

LT86102SXE是Lontium的第四代2端口HDMI / DVI分配器，可以將一個HDMI / DVI信號轉發到2個HDMI / DVI信號集，最多支持2個不同的HDMI / DVI接收/顯示端子。它基于ClearEdgeTM技術，每個通道支持高達3.4Gbps的數據速率，符合HDMI 1.4 / 2.0＆DVI 1.0規范。

2.功能

?支持高達3.4Gbps數據速率的3D視頻格式和4Kx2K擴展分辨率格式，以及60Hz YCbCr 4：2：0格式的4Kx2K

?自適應均衡和去加重以補償長電纜損耗

?ODT和校準

?符合HDCP 1.4規范的集成HDCP轉發器引擎

?完全由硬件控制或可選的軟件控制的HDCP操作

?預編程的HDCP密鑰集或外部EEPROM存儲的密鑰集

?集成CEC控制器

?集成EDID影子RAM和嵌入式EDID

?耐5V的DDC接口

?1個HDMI / DVI輸入端口，最多2個HDMI / DVI輸出端口

3.應用

?多顯示器/電視支持

?HDMI / DVI信號分離/重復

1. Description

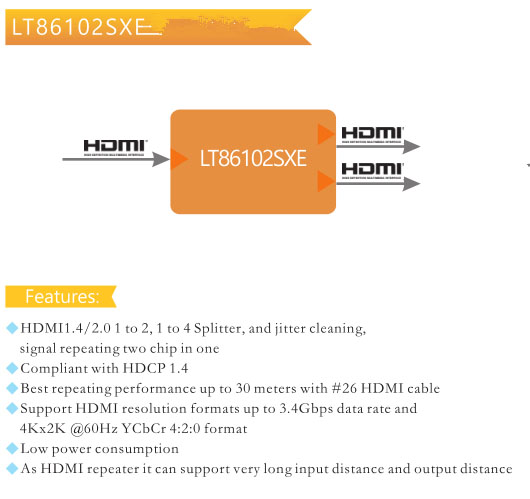

LT86102SXE is Lontium’s 4rd generation 2-port HDMI/DVI splitter which can repeat one HDMI/DVI signal to 2 HDMI/DVI signal sets, support up to 2 different HDMI/DVI receiving/display terminals. Based on ClearEdgeTM Technology, it supports up to 3.4Gbps data rate per channel, compliant with the HDMI 1.4/2.0&DVI 1.0 specifications.

2. Features

? HDMI 1.4/2.0&DVI 1.0 specifications compliant
? Support 3D video formats and 4Kx2K extended resolution formats up to 3.4Gbps data rate and 4Kx2K @60Hz YCbCr 4:2:0 format
? Adaptive equalization and de-emphasis to compensate long cable losses
? ODTs and calibration
? Integrated HDCP repeater engine compliant with HDCP 1.4 specification
? Fully hardware-controlled or optional software-controlled HDCP operations
? Pre-programmed HDCP key sets or external EEPROM stored key sets
? Integrated CEC controller
? Integrated EDID shadow RAM and embedded EDID
? 5V-tolerant DDC interfaces
? 1 HDMI/DVI input port, up to 2 HDMI/DVI output ports
? Unlimited cascading for more output ports or signal repeating
? 80-pin PQFP package

3.Applications
? Multiple display/TV support
? HDMI/DVI signal splitting/repeating
